What is the Jira Hooks for Bitbucket Plugin?

The Jira Hooks for Bitbucket plugin is a project, which aims the integration of JIRA in Bitbucket. Especially checks regarding the integrity of a branch against the related Jira issue is the target. In several cases we have to check a lot of things regarding the related Jira issue, before we can push into a branch or perform a integration merge. Therefore this project has the target to provide a set of hooks, which checks the consistence of the issue before the action will be performed. To ensure the integrity between branch and the related issue, this plugin provides a Push hook and a Merge Hook. Every hook contains several checks to control your issue and your git workflow.

What can be checked?

	Push	Merge	Merge Message Pull Request	Bitbucket UI	Local commit	Description
Commit needs issue key	AVAILABLE	AVAILABLE	AVAILABLE	AVAILABLE	AVAILABLE	A push or merge can be done only, if at least one commit of a push contains valid issue key reference
All commits needs a issue key	AVAILABLE	AVAILABLE	AVAILABLE	AVAILABLE	AVAILABLE	A push or merge can be done only, if all commits of a push contains a valid issue key reference
All issue keys in a commit	AVAILABLE	AVAILABLE	AVAILABLE	AVAILABLE	AVAILABLE	A push or merge can be done only, if all issue keys in a commit message are valid
Escape issue keys	AVAILABLE	AVAILABLE	AVAILABLE	AVAILABLE	AVAILABLE	Escaped issue keys, will not be evaluated
A branch needs a valid issue key	AVAILABLE	AVAILABLE	AVAILABLE	AVAILABLE	N/A	A branch can only be created, merged, pushed is the name contains a valid issue key.
Issue status	AVAILABLE	AVAILABLE	AVAILABLE	AVAILABLE	AVAILABLE	A push or merge can be done only, if the related issue is in the configured status. The status can be configured via regular expression.
Branch naming convention	AVAILABLE	N/A	N/A	AVAILABLE	N/A	The name of a new branch, will be checked. If a new branch do not match the naming convention, the push will be blocked. The naming convention can be configured via regular expression.
Squash check	AVAILABLE	N/A	N/A	N/A	N/A	A push with more than one commit will be blocked. A push is only allowed, if branches contains exact one commit. If the branch contains more than one commit, the commits need to be squashed.
Merge commit check	AVAILABLE	N/A	N/A	N/A	N/A	A push can be done only, if the push contains no merge commit. This will enforce, that merges will be done via Stash only. If a merge has been done with a different tool (e.g. SourceTree/SmartGit or simple in console) the resulting merge commit will be blocked.
JQL check	AVAILABLE	AVAILABLE	AVAILABLE	AVAILABLE	AVAILABLE	A push or merge can be done only, if the related issue matchs a given JIRA JQL expression.
Rebase check	N/A	AVAILABLE	AVAILABLE	N/A	N/A	Force a rebase of the source branch before a integration merge can be done. If a rebase is possible and makes sense, the merge is not allowed without rebasing the branch first. In result this check enforces the "The Rebase Option" in the following tutorial: https://www.atlassian.com/git/tutorials/merging-vs-rebasing/conceptual-overview Attention It is recommended to use this option on private forks only. The rebase strategy can be used with the force push only, which could have influence to other team members. Use this strategy carefully in a public repository. See also pros and cons in this Atlassian article https://www.atlassian.com/git/articles/git-team-workflows-merge-or-rebase/
Syntax check	AVAILABLE	AVAILABLE	AVAILABLE	AVAILABLE	AVAILABLE	A push or merge can be done only, if all commits match a specified syntax. This syntax can be configured based on regular expression.

Configuration of the hooks

Common Check Configuration

This configuration possibilities are available in the push hook and in the merge hook.

Fields

Description

Example

Syntax check

If this option is enabled, the related text field should contain a regular expression, which will define the syntax of the commit messages.

If the option is set, and the following regular expression is given,

^\[([A-Z]+)-(\d+)\](.|\n)+

then each commit message must start with a issue key, which is in brackets. Additionally after the key there must be a further description (e.g. "[TEST-1] further text" will be accepted. Only "[TEST-1]" as commit message will not be accepted. Also "TEST-1 and some further text" will not be accepted, because of the missing brackets. If the commit message do not match, the push or merge is blocked.

Issue status

If this option is enabled, the related text field should contain a regular expression, which will define the valid status of issue key references.

Attention

In version previous 2.x, the status list was not based on regular expression. It was just a comma separated field.

If the option is set, and the following regular expression is given,

Reviewed|Integration Request

then a merge or a push can be done only, if the issue status is "Reviewed" or "Integration Request". (Of course also a more complex regular expression is possible.)

Attention

If you have a international company and if you will support different languages, then you have to respect this in the regular expression. For example the regular expression

To Do|Aufgabe

will support the german and english version of the related status.

JQL check

If this option is enabled, the related text field should contain a valid JIRA JQL expression. A commit will be accepted only, if all issue key references will match the given JQL

If the option is set, and the following JQL is given,

(assignee=benni and fixVersion is not EMPTY)

then a given issue reference will be checked with this JQL. So a merge or push is only possible, if the assignee is the user "benni" and the fix version is set to any version.

(assignee=$currentUser)

You can also use the keyword "$currentUser", which will be replaced with the user wich will execute the merge or push. So the JQL ensure that the merge/push can only be done by the assignee of the issue.

Search in

It is possible to specify an issue key search strategy. You can configure where to search for issue keys. Only in branches? Only in commits messages? Or in branches and commit messages?

Issue-key Check

If this options are set, a issue key must exist. Additionally the issue key must reference a valid issue in JIRA.

There are three possibilities to check issue-keys:

At least one issue key reference must be available in any commit of a push
All commits of a push must have a valid issue key reference
Each branch name should contain a valid issue key

This is a push example, but the behavior regarding the merge hook is the same. (e.g. TEST-10000 does not exist)

Message	At least one	All	All in commit	Branch
git checkout -b my-branch/something git commit -m 'TEST-1 TEST-10000 this is a example' git push	ACCPETED	ACCPETED	REJECT	REJECT
git checkout -b my-branch/something git commit -m 'TEST-1 TEST-10000 This is a example' git commit -m 'This is a example' git push	ACCPETED	REJECT	REJECT	REJECT
git checkout -b my-branch/TEST-1 git commit -m 'This is a example' git push	REJECT	REJECT	REJECT	ACCPETED
git checkout -b my-branch/something git commit -m 'TEST-1 This is a example' git commit -m 'This is a example' git push	ACCPETED	REJECT	ACCPETED	REJECT

Issue-Key Escape Character

If an escape character is given, issue keys escaped with this character will be ignored in all further checks

The character will be used in in combination with regular expressions. Please think about the character.

This is a push example, but the behavior regarding the merge hook is the same. (e.g. TEST-10000 does not exist and the escape character is "!")

git checkout -b my-branch/something
git commit -m 'TEST-1 !TEST-10000 This is a example'
git commit -m 'This is a example'
git push

A Push and a Commit will be successfully, because the issue TEST-1 does exist and the issue key TEST-10000 is escaped.

Only one Application link needed

If enabled, only one of the given application link must be needed.

Only project Application links

If enabled, only configured project links will be used for data validation

Common Condition Configuration

Fields

Description

Example

Enabled branches

If this option is enabled, the related text field should contain a regular expression, which will define the branches. If the branch will match the regular expression, the merge/push will be checked. If the branch will not match, the checks will be skipped.

If the option is set, and the following regular expression is given,

master|develop

then the checks will be validate only if:

you will push commits in the master or develop branch
you will merge pull requests in the master or develop branch

If you will push or merge change-sets in a branch with a other name, then the checks will not be evaluated and the merge/push is always allowed.

Exception

If this option is enabled, the related text field should contain a valid user group. If the user which will do the merge/push is in the given group, then the checks will not be evaluated.

This is a push example, but the behavior regarding the merge hook is the same.

If the option is set, and the group admin is configured. Additionally there are several commits which would block a push or merge (e.g. no issue key reference is available), then the behaviour is:

Usecase

User

Group

Result

git commit -m 'this is a example'
git push

If the option "Issue Key Checks" is enabeled the following push will be rejected. But if a administrator will push the changes, all checks will be skipped. The result is that the administrator can push changes also, if the checks would block the push.

Administrator

admin

ACCPETED

git commit -m 'this is a example'
git push

The push will be blocked, because the user Benjamin is not in the user group admin.

Benjamin

stash-users

ACCPETED

Skip Merge Commits

Based on a keyword in a merge commit you can skip the all checks for this merge commit. The keyword can be configured in the push settings of the hook.

Example: The keyword <skip-merge-check>

git merge -m "Merge message with keyword <skip-merge-check>" branch-name
git push

Merge-Check Configuration

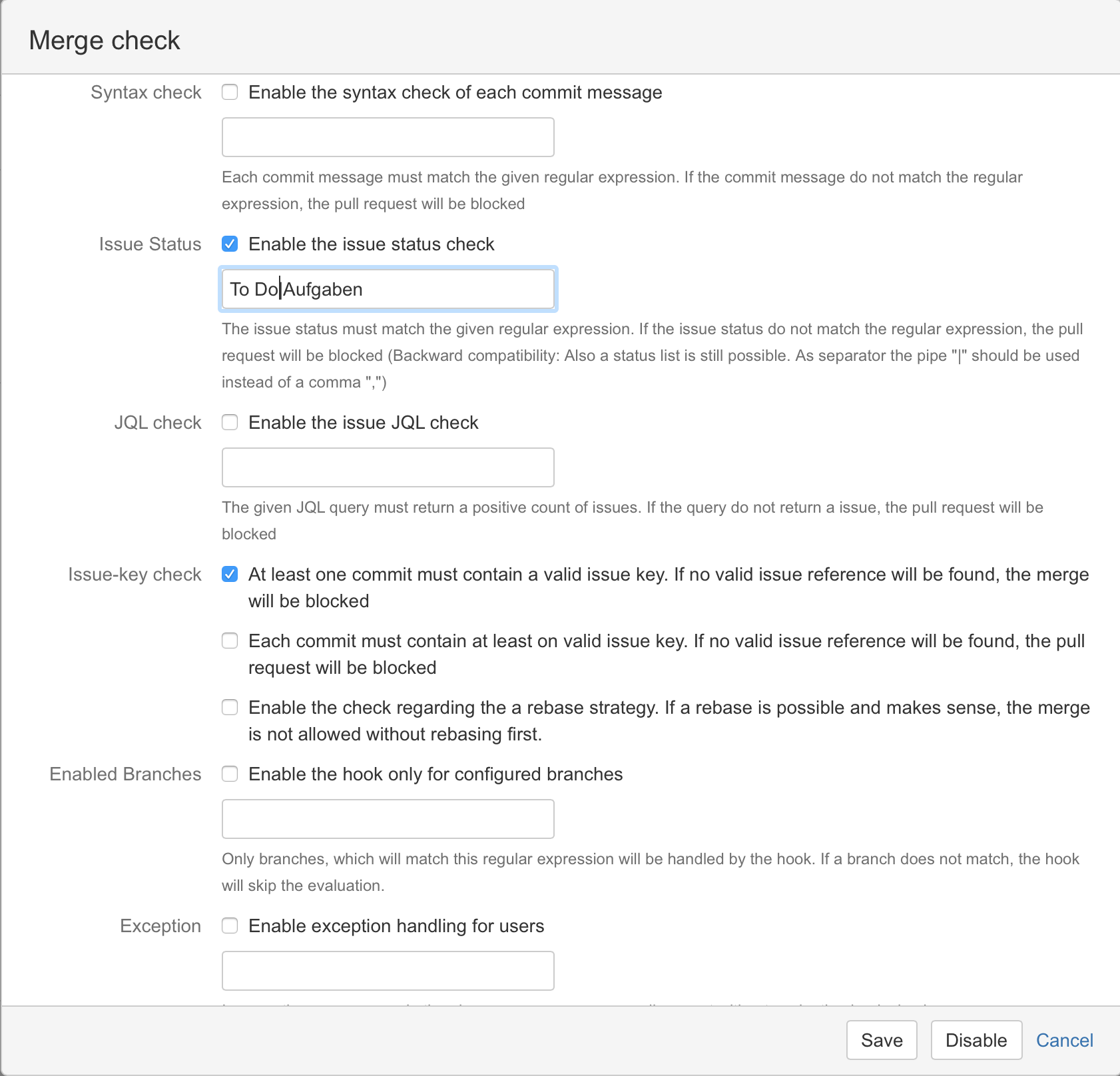

In the "Merge check" configuration page, the above mentioned checks can be enabled and configured. Additionally the rebase strategy can be configured.

Fields

Description

Example

Rebase check

If this option is enabled a merge can only be done only, if in the master are no newer commits. If there are newer commits, which are not in the source branch, the source branch must be rebased on to the top of the target branch. This will create a clean branch-merge picture and will resolve merge conflicts in a early stage.

Commit Graph

Result

"master"    ---- A ---- B ---- C
                   \
                    \
 "feature"          FA -- FB -- FC

ACCPETED

git checkout feature
git rebase master
git push -f

"master"    ---- A ---- B ---- C
                                \
                                 \
"feature"                        FA -- FB -- FC

ACCPETED

Push-Check Configuration

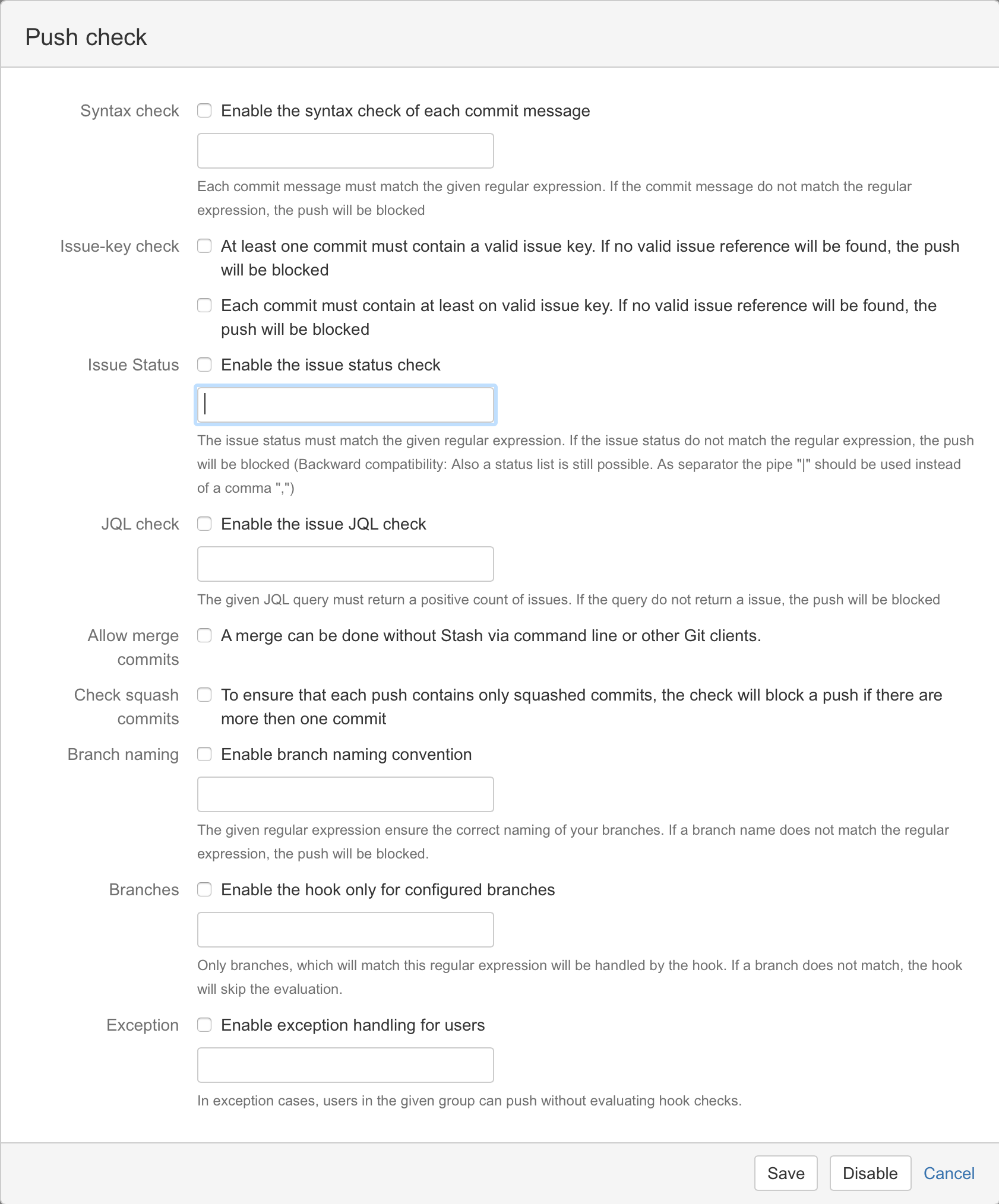

In the "Push check" configuration page, the above mentioned common checks can be enabled and configured. Additionally the squash check, branch naming check and merge commit check can be enabled and configured.

Fields

Description

Example

Squash check

If this option is enabled a push can be done only, if the push contains only one commit. If there are more commits, the push will be rejected. After squashing the commits to one commit the push is allowed again.

Commit Graph

Result

"feature"    ---- A ---- B ---- C

ACCPETED

"feature"    ---- A

ACCPETED

Merge commit check

If this option is not enabled a push can be done only, if in the push contains no merge commit.

Commit Graph

Option disabled

Option enabled

"branch x"    ----- A
                     \
                      \
"branch y"  --- FA -- merge --> push

ACCPETED

Branch naming convention

If this option is enabled, the related text field should contain a regular expression, which will define the syntax/naming of all new branches. This check will only be executed, if a new branches will be created via a push from a client. The creation of a branch via Bitbucket do not execute this check.

If the option is set, and the following regular expression is given,

branches\\/[bug|feature]+\\/.*

then each new branch needs to match this regular expression.

Branch name	Result
branch/bug/something	ACCPETED
branch/feature/somethingelse	ACCPETED
branch/improvement/something	ACCPETED

Local Commit-Check Configuration

The configuration is not needed. It will be used the same configuration as in the push-check configuration. The only thing which is needed is the installation of a local git hook, which will evaluate the commit message via rest-api. (See How to configure a local commit hook? for more information)

How does it have an affect?

How does the merge hooks have an affect?

If one of the configured checks, will be evaluated to false, then a merge will be blocked with a error message.

How does the push hooks have a affect?

If one of the configured checks, will be evaluated to false, then a push will be blocked and the push response prints a detailed error message.

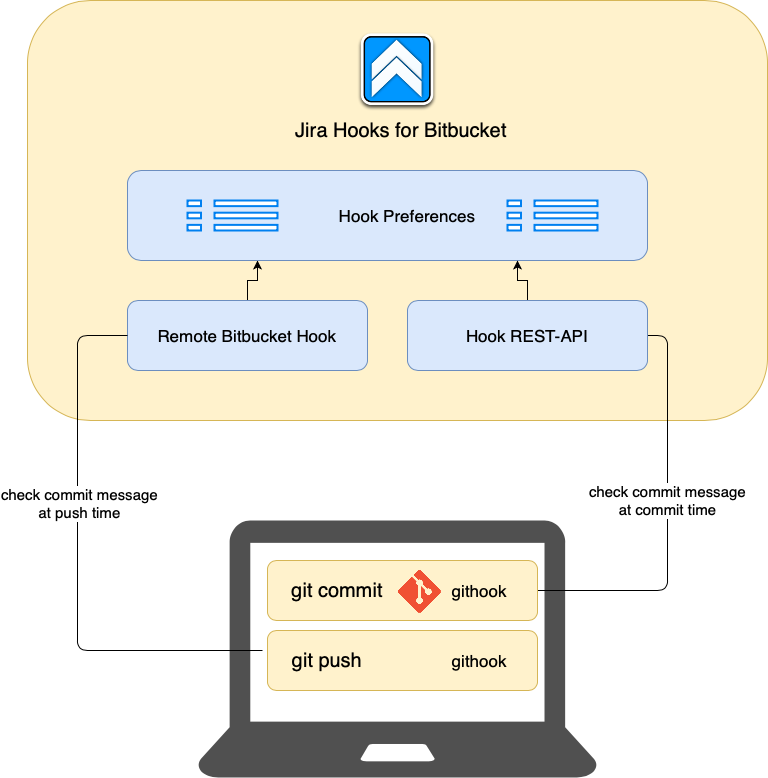

Local and remote check

With our hook it is possible to check the commit message at push time. Faulty commits are rejected and the commits have to be revised. This is annoying because there are maybe several commits affected, which makes changes difficult. So, why not do the same checks at commit time? That's why we introduced a REST API check. This REST-API check works with the same preferences, so the preferences can be managed centrally. By using a normal git-hook, you can perform the same checks locally at commit time and remote at push time.
